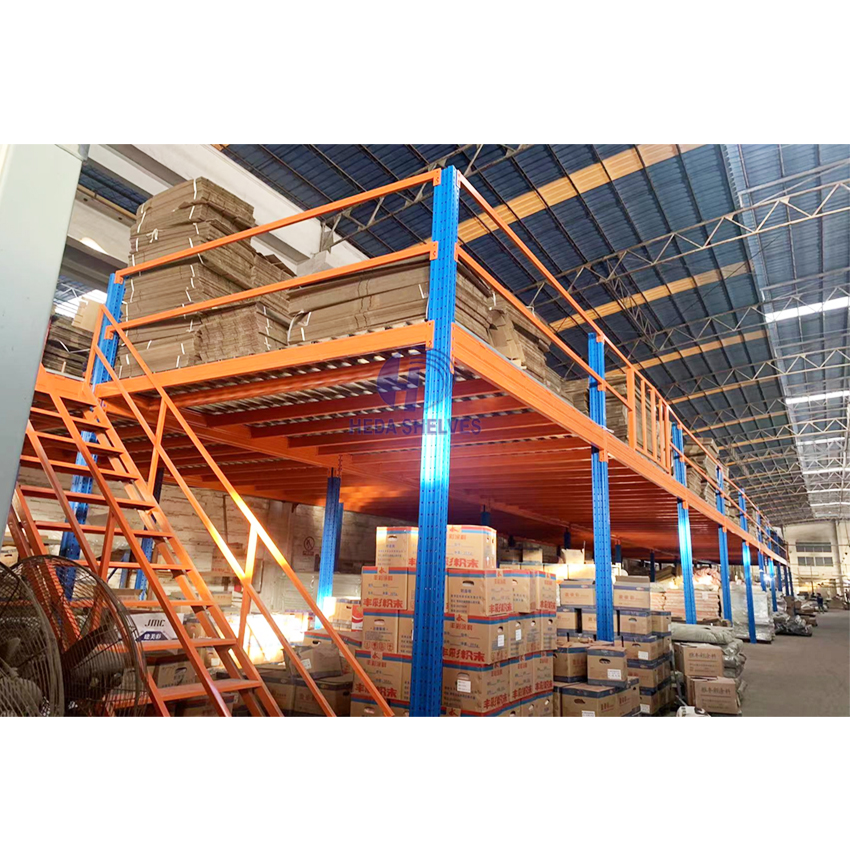

Mezzanine Rack System and Steel Platform Mezzanine Floor System for High-Capacity Warehouse Shelving and Multi-Level Storage

1 / 5

Mezzanine Rack System and Steel Platform Mezzanine Floor System for High-Capacity Warehouse Shelving and Multi-Level Storage

Send Inquiry

Product Description

Mezzanine Rack System Overview

The Mezzanine Rack System is an efficient storage solution designed to maximize vertical space by creating multiple tiers within a warehouse. This system integrates racking and a mezzanine platform to provide additional storage or workspace, making it ideal for medium to large warehouses, factories, and distribution centers.

Maximized Space Utilization: The mezzanine platform doubles or triples storage capacity by utilizing the warehouse's vertical height.

Versatile Design: Suitable for various goods, including boxes, pallets, and bulk items, with option to integrate shelving beneath.

Customizable Layout: Available in single-tier or multi-tier configurations to meet specific storage needs.

Integrated Platform: Provides floor space for offices, workstations, or storage, enhancing functionality.

Robust & Durable: Constructed with high-quality steel and finished with electrostatic powder coating.

Safe & Convenient: Equipped with staircases, safety rails, and loading gates for secure operation.

Technical Specifications

Product name	Warehouse Mezzanine Floor Racking System
Features	Cold-rolled steel
Load capacity	300kg-1000kg per square meter (Customizable)
Level	2-4 multi-tier (Customizable)
Space between floors	2200mm-2700mm
Material of floor	Wood plywood, galvanized sheet, steel
Color	Column blue, beam orange red (Customizable)
Handling method	Manual, Slide, Cargo lift, Forklift
Accessories	Lifting platform, stair, ladder, punching screen, shelf, etc.

System Components & Flooring Types

Corrugated metal

Metal grid

Slotted Metal

Perforated metal

Access & Safety Solutions

Swing Gate

Opens inward to facilitate merchandise input. Incorporates lower bumper and upper hand-latch.

Up and Over Pallet Gate

Offers maximum safety. The space is always protected because the opposite railing must be pushed downwards to access goods.

Safety Zone

Creates a secure space for depositing goods. Railing and chain guards are installed based on local norms.

Stairways

Railings

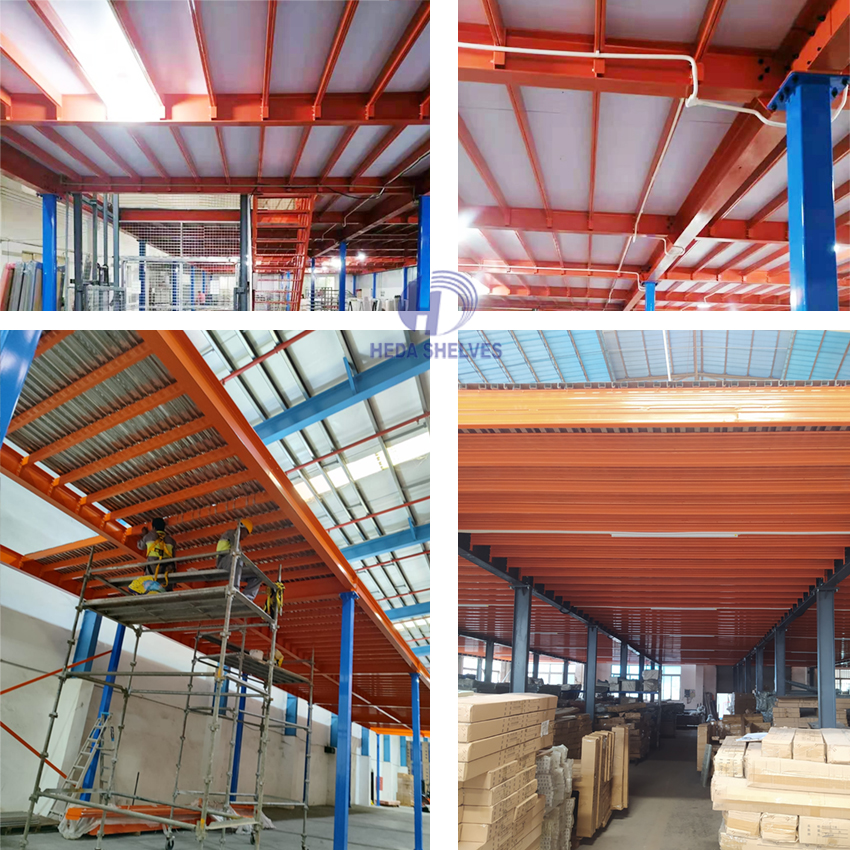

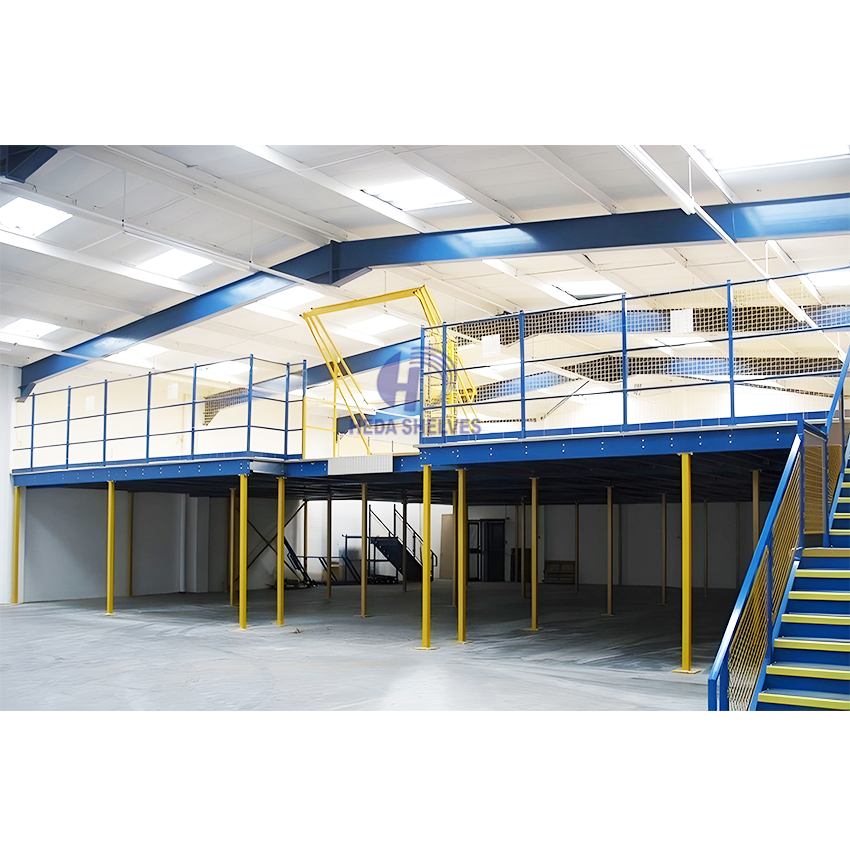

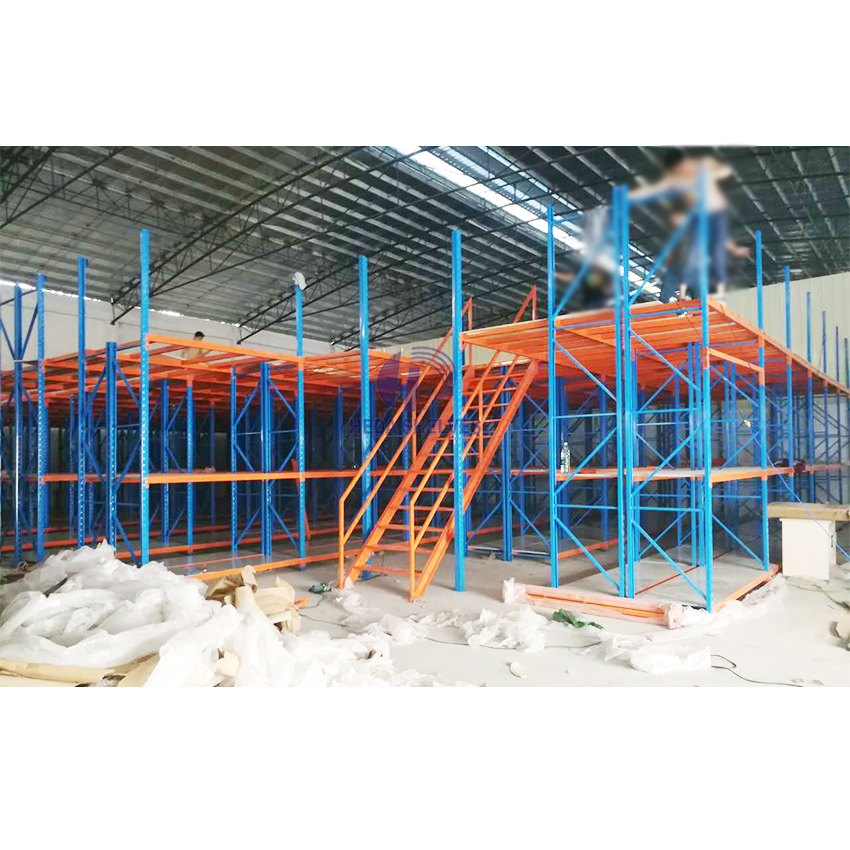

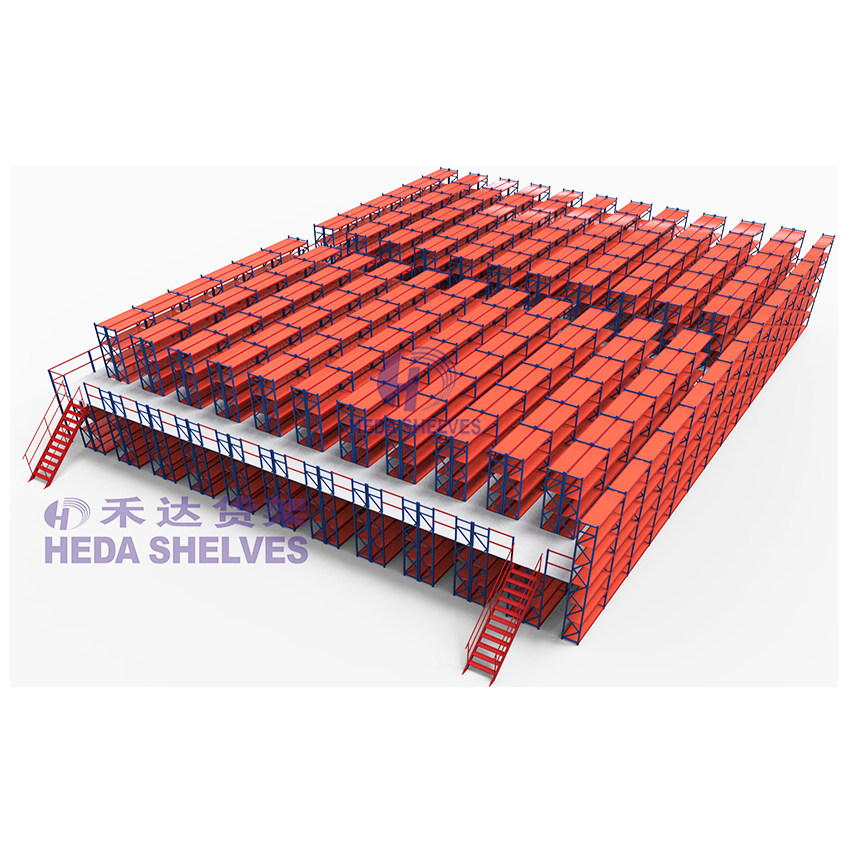

3D Design & Project Cases

Product Range

We specialize in providing comprehensive storage solutions including:

Warehouse Racking: Pallet racking, cantilever racks, drive-in systems, and mezzanine floors.
Retail Shelving: Supermarket gondolas, shopping carts, and cashier counters.
Display Stands: Custom metal product stands and hardware tool displays.

Frequently Asked Questions (FAQ)

What is the delivery time for the mezzanine racking system?

In general, the delivery time is within 15 days. It also depends on the order quantity and specific shelving design requirements.

Can the mezzanine rack system be customized to my warehouse?

Yes, we have rich experience in customizing shelves according to customers' designs and specific site dimensions.

What materials are available for the mezzanine floor?

Flooring materials can be selected from wood plywood, galvanized sheets, metal grids, or solid steel plates depending on your load requirements.

How much weight can the mezzanine floor support?

The standard load capacity ranges from 300kg to 1000kg per square meter, but it can be customized to support heavier loads if needed.

Do you provide installation instructions?

Yes, we provide detailed installation instructions for every type of shelf to ensure a secure and proper setup.

What is the difference between a main rack and an add-on rack?

A main rack is a standalone starter unit with 2 uprights. An add-on rack is a continuation unit that uses only 1 upright to connect to the existing system.
