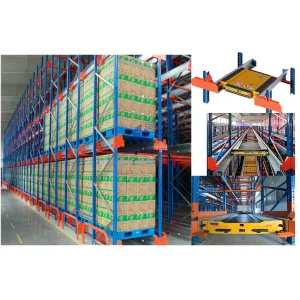

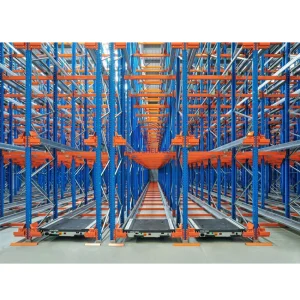

Explore our premium grade, high-efficiency radio and 4-way shuttle racking products engineered for heavy-duty applications.
Key drivers forcing warehouses to transition from static racking to automated dynamic shuttle systems.
In the contemporary logistics ecosystem, industrial space utilization, warehouse velocity, and operational scalability have become critical benchmarks. Global supply chain disruptions, fueled by rapid e-commerce expansion and changing consumer expectations, have compelled warehouse operators to move away from low-density, labor-intensive static pallet racking. Today, Shuttle Racking Systems stand at the forefront of this industrial revolution, offering an optimized bridge between traditional racking and fully automated storage and retrieval systems (AS/RS).
According to industrial automation statistics, the global automated material handling market is projected to reach unprecedented volumes by 2030, with a substantial portion of this growth dedicated to high-density pallet shuttle systems. The integration of 2-Way and 4-Way radio shuttle systems is no longer a luxury reserved for multi-billion-dollar distribution hubs; it is actively adopted by medium-to-large scale distribution networks seeking to mitigate soaring land costs and labor scarcity.
By eliminating forklift access aisles within the racking blocks, shuttle racking utilizes up to 85% of available warehouse volume, compared to a mere 35-45% in standard selective pallet systems.

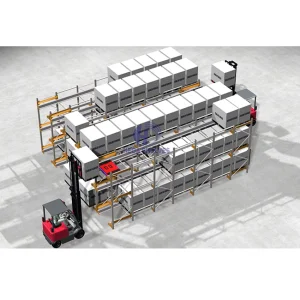

Forklifts stay at the perimeter of the racking structure. The radio shuttle car enters the lanes to retrieve and deposit pallets, drastically minimizing rack collision damage and operator fatigue.
Shuttle racking systems are configurable for both First-In-First-Out (FIFO) and Last-In-First-Out (LIFO) strategies, adapting efficiently to fluctuating inventory turn rates.
A trusted global manufacturing partner of structural racking systems and automated engineering components.
Established in 2014, Shenzhen Heda Warehouse Equipment Co., Ltd. is a premier manufacturer specializing in heavy-duty warehouse racking and industrial storage solutions. Spanning a modern manufacturing facility of 35,000 m², our enterprise integrates R&D, design, production, and international marketing to serve diverse storage needs worldwide. With 12 years of industry experience and 8 years of dedicated export expertise, we deliver high-caliber storage systems that generate over $28 million in annual export revenue.
At Heda, quality control and engineering innovation drive our core operations. Our robust QC department comprises 45 skilled inspectors utilizing rigorous testing methods, including raw material tensile testing, automated weld flaw detection, layer load-bearing stress analysis, and salt spray surface corrosion testing. Supported by a professional R&D team of 28 senior structural engineers, we maintain strong full-customization capabilities (OEM/ODM)—offering tailored rack dimensions, load capacities, surface coatings, and layout designs. Driven by continuous innovation, we launched over 120 new dynamic storage products and component upgrades last year.
Operating with a strong direct-factory and international trade background, we have built a resilient ecosystem supported by over 800 supply chain partners. Our products are exported to major global markets, including North America, Western Europe, Southeast Asia, and the Middle East. We proudly serve a diverse clientele ranging from third-party logistics (3PL) providers and large distribution centers to industrial manufacturers and wholesale equipment distributors.
We trace quality from raw materials through automated fabrication and strict testing protocols to guarantee structurally sound installations.
Deep-dive specifications comparing various steel types, tolerances, and configurations engineered for warehouse operations.
A reliable shuttle racking layout starts with selecting high-grade steel profiles. Unlike static shelving, a semi-automated system handles continuous kinetic forces exerted by heavy radio shuttles breaking and accelerating down custom rail lines. Heda Shelves utilizes certified Q235B and Q355B structural steel, optimizing structural yield strength and ensuring the system deflects within safe limits (typically less than L/300) under maximum static and dynamic load cycles.
| Feature / Component | 2-Way Radio Shuttle | 4-Way Automated Shuttle | AS/RS Stacker Crane Systems |
|---|---|---|---|
| Primary Mobility | Bidirectional (Forward/Backward within lanes) | Omnidirectional (X and Y coordinate axes) | Vertical lift + Linear Travel along fixed aisles |
| Throughput Performance | Medium (Fast within lane, requires forklift swap) | High (Self-routes through vertical lifts & grids) | Extremely High (Continuous mechanical cycling) |
| Storage Strategy | LIFO primarily, FIFO with double-sided layouts | Full Dynamic FIFO & LIFO versatility | Strict computer-guided FIFO/LIFO execution |
| Maximum Lane Depth | Up to 40+ meters (Depending on battery run) | Virtually limitless dynamic grid layout | Usually restricted to double-deep configurations |
| Steel Standard | Q235B Cold-Rolled Structural Steel | Q355B High-Tensile Steel Profiles | Custom structural steel profiles (S355 or equivalent) |
| Target Industries | FMCG, Cold Storage, Standard Distribution | Automotive, Pharmacy, High-Density Parts | Massive logistics nodes, bulk industrial shipping |
Each design is modeled under regional earthquake load parameters, observing FEM 10.2.11 and RMI standards to prevent rack collapse or buckle risks during unexpected structural shifts.
Automatic sensors on shuttle cars rely on millimeter-precise spacing. We maintain rail alignment tolerances below ±1.5mm across the complete length of the storage lane.
Our electrostatic epoxy powder coating ensures high corrosion resistance, vital for preserving component integrity in high-moisture or low-temperature warehouse setups.
How Heda custom-engineers shuttle racking setups to match target business operational constraints.
Storage demands vary significantly across distinct trade sectors. A cold food warehouse prioritizes energy conservation and thermal efficiency, while a high-throughput 3PL facility focuses on SKU accessibility and fast-cycling capabilities. Below is an overview of how we optimize layouts for specific high-growth sectors:

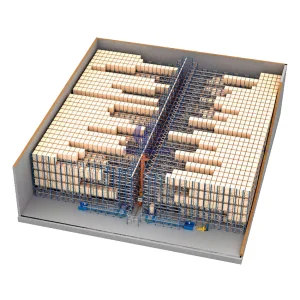

Operating in environments down to -30°C demands specialized structural steel to prevent low-temperature embrittlement. Heda utilizes low-temp-rated steel and high-efficiency lithium batteries designed for prolonged cold retention inside automatic shuttle units. Maximizing product density reduces empty air space, significantly lowering overall cooling power consumption.
For FMCG distributors with high-volume, low-SKU inventory mixes, speed is essential. We configure deep-lane 2-way shuttle racking arrays that minimize crane and vehicle transitions. Using LIFO schemes for matching batches and FIFO schemes for fast-expiring goods ensures clean rotation and prevents stock expiration issues.
E-commerce centers demand highly dynamic storage designs. By implementing modular shuttle systems integrated with WMS/WCS software databases, operators can easily dynamically relocate slow and fast-moving stock to optimize daily order picking times.
Direct technical answers addressing critical parameters, tolerances, and design choices when deploying pallet shuttle racks.
